Frequency Conversion Winding Wire
Categories：
Keywords：
Product introduction

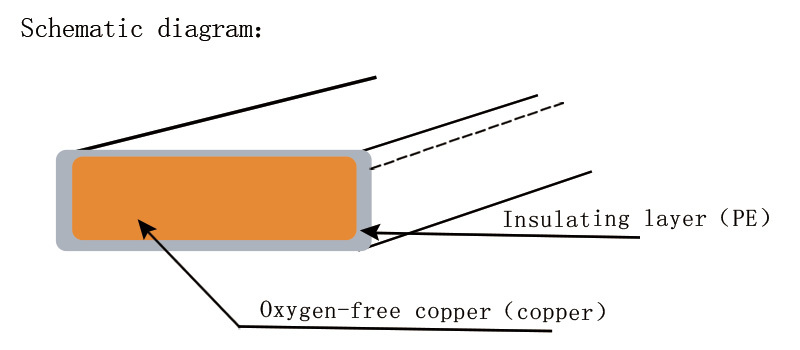

This product adopts double-layer insulation technology, inner layer of wrapped sintering insulation, high insulation strength, high temperature resistance, resistance to frequency conversion; the outer sheath is modified polymer insulating material. The conductor is made of oxygen-free copper material with smooth surface, high conductor density and good conductivity. It is an ideal winding scheme for large submersible motor and electromagnetic stirrer。
Reference table for water-resistant line assembly specifications
| Nominal cross section(mm2) | Outer diameter (mm) | 100m/kg | D.C. resistance(Ω) |
| 0.1734 | 0.95 | 0.2550 | 0.09990 |
| 0.2042 | 0.95 | 0.2550 | 0.08540 |
| 0.2375 | 1.02 | 0.2800 | 0.07356 |
| 0.2550 | 1.10 | 0.3100 | 0.06870 |
| 0.2733 | 1.11 | 0.3133 | 0.06310 |
| 0.2826 | 1.11 | 0.3250 | 0.06222 |
| 0.3018 | 1.15 | 0.3515 | 0.05536 |
| 0.3215 | 1.15 | 0.3410 | 0.04300 |
| 0.3524 | 1.19 | 0.4120 | 0.04979 |
| 0.3737 | 1.19 | 0.4260 | 0.04700 |
| 0.3957 | 1.25 | 0.4460 | 0.04442 |
| 0.4299 | 1.25 | 0.4850 | 0.03987 |
| 0.4654 | 1.25 | 0.5100 | 0.03750 |
| 0.5024 | 1.30 | 0.5610 | 0.03500 |
| 0.5672 | 1.37 | 0.6200 | 0.03104 |
| 0.6359 | 1.67 | 0.7200 | 0.02765 |
| 0.6789 | 1.67 | 0.7520 | 0.02602 |
| 0.7235 | 1.72 | 0.7750 | 0.02484 |
| 0.7850 | 1.80 | 0.8700 | 0.02240 |
| 0.8491 | 1.84 | 0.9800 | 0.02071 |
| 0.8820 | 1.85 | 0.9900 | 0.01995 |
| 0.9156 | 1.85 | 1.0031 | 0.01896 |
| 0.9847 | 1.92 | 1.0700 | 0.01785 |
| 1.0563 | 1.95 | 1.1320 | 0.01678 |
| 1.0930 | 2.00 | 1.2930 | 0.01609 |
| 1.1304 | 2.00 | 1.2170 | 0.01520 |
| 1.2266 | 2.05 | 1.3160 | 0.01435 |
| 1.3267 | 2.10 | 1.3900 | 0.01325 |
| 1.4307 | 2.15 | 1.5200 | 0.01235 |
| 1.5386 | 2.20 | 1.6030 | 0.01143 |
| 1.6505 | 2.25 | 1.7170 | 0.01078 |
| 1.7663 | 2.30 | 1.8300 | 0.00996 |
| 1.9104 | 2.35 | 1.9310 | 0.00926 |
| 2.0096 | 2.40 | 2.0670 | 0.00875 |
| 2.1372 | 2.45 | 2.1536 | 0.00825 |
| 2.2687 | 2.55 | 2.2630 | 0.00775 |
| 2.5434 | 2.65 | 2.6620 | 0.00691 |
| 2.6867 | 2.70 | 2.7000 | 0.00674 |
| 2.8339 | 2.86 | 2.9412 | 0.00620 |
| 3.1400 | 3.00 | 3.1912 | 0.00560 |
| 3.5281 | 3.20 | 3.5293 | 0.00498 |
| 3.7994 | 3.40 | 3.6012 | 0.00462 |
| 3.9388 | 3.42 | 3.9000 | 0.00446 |
| 4.3721 | 3.55 | 4.2920 | 0.00402 |
| 4.5216 | 3.60 | 4.4700 | 0.00381 |
| 4.9063 | 3.70 | 4.8910 | 0.00358 |
| 5.3066 | 3.80 | 5.2490 | 0.00330 |
| 5.5127 | 3.85 | 5.4200 | 0.00319 |
| 5.7227 | 3.90 | 5.6380 | 0.00302 |
| 6.1544 | 4.00 | 6.0780 | 0.00286 |
| 6.3762 | 4.05 | 6.2460 | 0.00270 |
| 6.6019 | 4.10 | 6.4000 | 0.00267 |
| 7.0650 | 4.20 | 6.8390 | 0.00249 |
| 7.7892 | 4.45 | 7.5700 | 0.00226 |
| 8.0384 | 4.50 | 7.8200 | 0.00226 |
| 8.5487 | 4.60 | 8.4150 | 0.00186 |
| 8.8097 | 4.65 | 8.7000 | 0.00178 |
| 9.0746 | 4.70 | 9.6810 | 0.00167 |
| 9.6163 | 4.90 | 9.6700 | 0.00148 |
| 9.8930 | 4.95 | 9.6810 | 0.00139 |
| 10.1736 | 5.00 | 9.7200 | 0.00131 |
| 3.5168 | 3.62 | 3.8300 | 0.00510 |
| 3.9701 | 3.77 | 4.3000 | 0.00443 |
| 4.4510 | 3.93 | 4.8700 | 0.00403 |
| 5.0642 | 4.07 | 5.5500 | 0.00345 |
| 4.4950 | 4.22 | 5.5600 | 0.00326 |
| 5.9434 | 4.35 | 6.2083 | 0.00296 |
| 6.1742 | 4.40 | 6.8500 | 0.00279 |
| 6.8929 | 4.58 | 7.2400 | 0.00260 |
| 7.1010 | 4.73 | 7.4117 | 0.00247 |
| 7.7319 | 4.88 | 8.1900 | 0.00238 |
| 8.3897 | 5.05 | 8.5000 | 0.00214 |
| 9.5456 | 5.27 | 9.8300 | 0.00188 |
| 10.7761 | 5.52 | 11.2200 | 0.00166 |
| 12.0811 | 5.78 | 12.3800 | 0.00148 |
| 13.7457 | 6.08 | 14.1300 | 0.00133 |
| 14.9150 | 6.40 | 15.4100 | 0.00120 |
| 16.1321 | 6.55 | 16.0450 | 0.00107 |
| 16.7585 | 6.58 | 16.8500 | 0.00101 |
| 18.7094 | 6.95 | 18.0500 | 0.00092 |
| 20.7676 | 7.50 | 20.5000 | 0.00082 |
