Durable Pe+Pa Insulated Winding Wire
Keywords：
Product introduction
This product ad

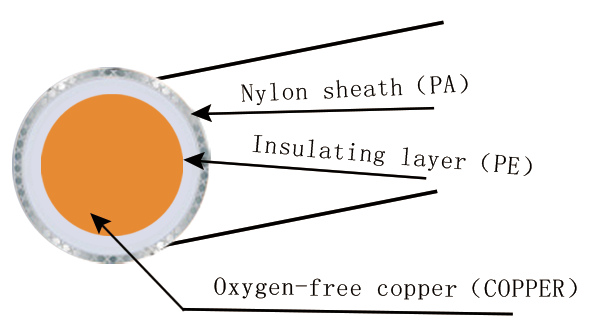

opts double-layer coating design, the inner layer of the wire core is oxygen-free copper wire, and the imported high-voltage polyethylene is used as the insulation layer, with good insulation; the outer layer is made of polymer engineering material (nylon), which is waterproof, oil resistant, corrosion resistant, acid, alkali and salt resistant, high mechanical strength, suitable for various submersible electric pumps and oil-immersed sewage pumps.
Reference table for water-resistant line assembly specifications
| Nominal cross section(mm2) | Outer diameter (mm) | 100m/kg | D.C. resistance(Ω) |
| 0.1734 | 0.95 | 0.2550 | 0.09990 |
| 0.2042 | 0.95 | 0.2550 | 0.08540 |
| 0.2375 | 1.02 | 0.2800 | 0.07356 |
| 0.2550 | 1.10 | 0.3100 | 0.06870 |
| 0.2733 | 1.11 | 0.3133 | 0.06310 |
| 0.2826 | 1.11 | 0.3250 | 0.06222 |
| 0.3018 | 1.15 | 0.3515 | 0.05536 |
| 0.3215 | 1.15 | 0.3410 | 0.04300 |
| 0.3524 | 1.19 | 0.4120 | 0.04979 |
| 0.3737 | 1.19 | 0.4260 | 0.04700 |
| 0.3957 | 1.25 | 0.4460 | 0.04442 |
| 0.4299 | 1.25 | 0.4850 | 0.03987 |
| 0.4654 | 1.25 | 0.5100 | 0.03750 |
| 0.5024 | 1.30 | 0.5610 | 0.03500 |
| 0.5672 | 1.37 | 0.6200 | 0.03104 |
| 0.6359 | 1.67 | 0.7200 | 0.02765 |
| 0.6789 | 1.67 | 0.7520 | 0.02602 |
| 0.7235 | 1.72 | 0.7750 | 0.02484 |
| 0.7850 | 1.80 | 0.8700 | 0.02240 |
| 0.8491 | 1.84 | 0.9800 | 0.02071 |
| 0.8820 | 1.85 | 0.9900 | 0.01995 |
| 0.9156 | 1.85 | 1.0031 | 0.01896 |
| 0.9847 | 1.92 | 1.0700 | 0.01785 |
| 1.0563 | 1.95 | 1.1320 | 0.01678 |
| 1.0930 | 2.00 | 1.2930 | 0.01609 |
| 1.1304 | 2.00 | 1.2170 | 0.01520 |
| 1.2266 | 2.05 | 1.3160 | 0.01435 |
| 1.3267 | 2.10 | 1.3900 | 0.01325 |
| 1.4307 | 2.15 | 1.5200 | 0.01235 |
| 1.5386 | 2.20 | 1.6030 | 0.01143 |
| 1.6505 | 2.25 | 1.7170 | 0.01078 |
| 1.7663 | 2.30 | 1.8300 | 0.00996 |
| 1.9104 | 2.35 | 1.9310 | 0.00926 |
| 2.0096 | 2.40 | 2.0670 | 0.00875 |
| 2.1372 | 2.45 | 2.1536 | 0.00825 |
| 2.2687 | 2.55 | 2.2630 | 0.00775 |
| 2.5434 | 2.65 | 2.6620 | 0.00691 |
| 2.6867 | 2.70 | 2.7000 | 0.00674 |
| 2.8339 | 2.86 | 2.9412 | 0.00620 |
| 3.1400 | 3.00 | 3.1912 | 0.00560 |
| 3.5281 | 3.20 | 3.5293 | 0.00498 |
| 3.7994 | 3.40 | 3.6012 | 0.00462 |
| 3.9388 | 3.42 | 3.9000 | 0.00446 |
| 4.3721 | 3.55 | 4.2920 | 0.00402 |
| 4.5216 | 3.60 | 4.4700 | 0.00381 |
| 4.9063 | 3.70 | 4.8910 | 0.00358 |
| 5.3066 | 3.80 | 5.2490 | 0.00330 |
| 5.5127 | 3.85 | 5.4200 | 0.00319 |
| 5.7227 | 3.90 | 5.6380 | 0.00302 |
| 6.1544 | 4.00 | 6.0780 | 0.00286 |
| 6.3762 | 4.05 | 6.2460 | 0.00270 |
| 6.6019 | 4.10 | 6.4000 | 0.00267 |
| 7.0650 | 4.20 | 6.8390 | 0.00249 |
| 7.7892 | 4.45 | 7.5700 | 0.00226 |
| 8.0384 | 4.50 | 7.8200 | 0.00226 |
| 8.5487 | 4.60 | 8.4150 | 0.00186 |
| 8.8097 | 4.65 | 8.7000 | 0.00178 |
| 9.0746 | 4.70 | 9.6810 | 0.00167 |
| 9.6163 | 4.90 | 9.6700 | 0.00148 |
| 9.8930 | 4.95 | 9.6810 | 0.00139 |
| 10.1736 | 5.00 | 9.7200 | 0.00131 |
| 3.5168 | 3.62 | 3.8300 | 0.00510 |
| 3.9701 | 3.77 | 4.3000 | 0.00443 |
| 4.4510 | 3.93 | 4.8700 | 0.00403 |
| 5.0642 | 4.07 | 5.5500 | 0.00345 |
| 4.4950 | 4.22 | 5.5600 | 0.00326 |
| 5.9434 | 4.35 | 6.2083 | 0.00296 |
| 6.1742 | 4.40 | 6.8500 | 0.00279 |
| 6.8929 | 4.58 | 7.2400 | 0.00260 |
| 7.1010 | 4.73 | 7.4117 | 0.00247 |
| 7.7319 | 4.88 | 8.1900 | 0.00238 |
| 8.3897 | 5.05 | 8.5000 | 0.00214 |
| 9.5456 | 5.27 | 9.8300 | 0.00188 |
| 10.7761 | 5.52 | 11.2200 | 0.00166 |
| 12.0811 | 5.78 | 12.3800 | 0.00148 |
| 13.7457 | 6.08 | 14.1300 | 0.00133 |
| 14.9150 | 6.40 | 15.4100 | 0.00120 |
| 16.1321 | 6.55 | 16.0450 | 0.00107 |
| 16.7585 | 6.58 | 16.8500 | 0.00101 |
| 18.7094 | 6.95 | 18.0500 | 0.00092 |
| 20.7676 | 7.50 | 20.5000 | 0.00082 |
