Polypropylene Insulated Winding Wire Source
Keywords：
Product introduction

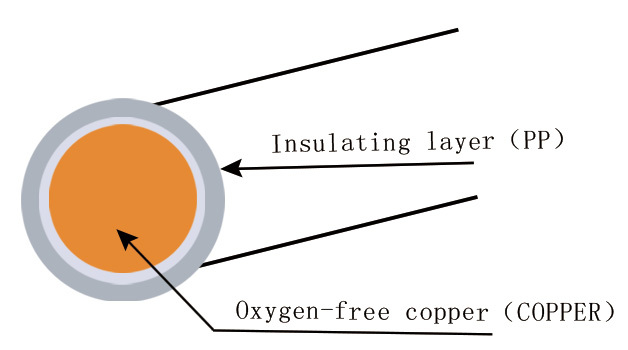

The product adopts advanced double layer co-extrusion process, and the core is oxygen-free copper wire. Different formula of internal and external insulation layer, inner pp1 insulation layer, stable insulation performance can effectively prevent the generation of water branches; the outer pp2 insulation layer is used as a jacket with high mechanical strength, anti-scratch and abrasion, and strong waterproof performance to give full play to their respective advantages; the new winding products introduced by our company are suitable for various submersible electric pump motors, widely used in farmland irrigation, deep water drinking and other fields
Reference table for water-resistant line assembly specifications
| Nominal cross section(mm2) | Outer diameter (mm) | 100m/kg | D.C. resistance(Ω) |
| 0.1734 | 0.95 | 0.2550 | 0.09990 |
| 0.2042 | 0.95 | 0.2550 | 0.08540 |
| 0.2375 | 1.02 | 0.2800 | 0.07356 |
| 0.2550 | 1.10 | 0.3100 | 0.06870 |
| 0.2733 | 1.11 | 0.3133 | 0.06310 |
| 0.2826 | 1.11 | 0.3250 | 0.06222 |
| 0.3018 | 1.15 | 0.3515 | 0.05536 |
| 0.3215 | 1.15 | 0.3410 | 0.04300 |
| 0.3524 | 1.19 | 0.4120 | 0.04979 |
| 0.3737 | 1.19 | 0.4260 | 0.04700 |
| 0.3957 | 1.25 | 0.4460 | 0.04442 |
| 0.4299 | 1.25 | 0.4850 | 0.03987 |
| 0.4654 | 1.25 | 0.5100 | 0.03750 |
| 0.5024 | 1.30 | 0.5610 | 0.03500 |
| 0.5672 | 1.37 | 0.6200 | 0.03104 |
| 0.6359 | 1.67 | 0.7200 | 0.02765 |
| 0.6789 | 1.67 | 0.7520 | 0.02602 |
| 0.7235 | 1.72 | 0.7750 | 0.02484 |
| 0.7850 | 1.80 | 0.8700 | 0.02240 |
| 0.8491 | 1.84 | 0.9800 | 0.02071 |
| 0.8820 | 1.85 | 0.9900 | 0.01995 |
| 0.9156 | 1.85 | 1.0031 | 0.01896 |
| 0.9847 | 1.92 | 1.0700 | 0.01785 |
| 1.0563 | 1.95 | 1.1320 | 0.01678 |
| 1.0930 | 2.00 | 1.2930 | 0.01609 |
| 1.1304 | 2.00 | 1.2170 | 0.01520 |
| 1.2266 | 2.05 | 1.3160 | 0.01435 |
| 1.3267 | 2.10 | 1.3900 | 0.01325 |
| 1.4307 | 2.15 | 1.5200 | 0.01235 |
| 1.5386 | 2.20 | 1.6030 | 0.01143 |
| 1.6505 | 2.25 | 1.7170 | 0.01078 |
| 1.7663 | 2.30 | 1.8300 | 0.00996 |
| 1.9104 | 2.35 | 1.9310 | 0.00926 |
| 2.0096 | 2.40 | 2.0670 | 0.00875 |
| 2.1372 | 2.45 | 2.1536 | 0.00825 |
| 2.2687 | 2.55 | 2.2630 | 0.00775 |
| 2.5434 | 2.65 | 2.6620 | 0.00691 |
| 2.6867 | 2.70 | 2.7000 | 0.00674 |
| 2.8339 | 2.86 | 2.9412 | 0.00620 |
| 3.1400 | 3.00 | 3.1912 | 0.00560 |
| 3.5281 | 3.20 | 3.5293 | 0.00498 |
| 3.7994 | 3.40 | 3.6012 | 0.00462 |
| 3.9388 | 3.42 | 3.9000 | 0.00446 |
| 4.3721 | 3.55 | 4.2920 | 0.00402 |
| 4.5216 | 3.60 | 4.4700 | 0.00381 |
| 4.9063 | 3.70 | 4.8910 | 0.00358 |
| 5.3066 | 3.80 | 5.2490 | 0.00330 |
| 5.5127 | 3.85 | 5.4200 | 0.00319 |
| 5.7227 | 3.90 | 5.6380 | 0.00302 |
| 6.1544 | 4.00 | 6.0780 | 0.00286 |
| 6.3762 | 4.05 | 6.2460 | 0.00270 |
| 6.6019 | 4.10 | 6.4000 | 0.00267 |
| 7.0650 | 4.20 | 6.8390 | 0.00249 |
| 7.7892 | 4.45 | 7.5700 | 0.00226 |
| 8.0384 | 4.50 | 7.8200 | 0.00226 |
| 8.5487 | 4.60 | 8.4150 | 0.00186 |
| 8.8097 | 4.65 | 8.7000 | 0.00178 |
| 9.0746 | 4.70 | 9.6810 | 0.00167 |
| 9.6163 | 4.90 | 9.6700 | 0.00148 |
| 9.8930 | 4.95 | 9.6810 | 0.00139 |
| 10.1736 | 5.00 | 9.7200 | 0.00131 |
| 3.5168 | 3.62 | 3.8300 | 0.00510 |
| 3.9701 | 3.77 | 4.3000 | 0.00443 |
| 4.4510 | 3.93 | 4.8700 | 0.00403 |
| 5.0642 | 4.07 | 5.5500 | 0.00345 |
| 4.4950 | 4.22 | 5.5600 | 0.00326 |
| 5.9434 | 4.35 | 6.2083 | 0.00296 |
| 6.1742 | 4.40 | 6.8500 | 0.00279 |
| 6.8929 | 4.58 | 7.2400 | 0.00260 |
| 7.1010 | 4.73 | 7.4117 | 0.00247 |
| 7.7319 | 4.88 | 8.1900 | 0.00238 |
| 8.3897 | 5.05 | 8.5000 | 0.00214 |
| 9.5456 | 5.27 | 9.8300 | 0.00188 |
| 10.7761 | 5.52 | 11.2200 | 0.00166 |
| 12.0811 | 5.78 | 12.3800 | 0.00148 |
| 13.7457 | 6.08 | 14.1300 | 0.00133 |
| 14.9150 | 6.40 | 15.4100 | 0.00120 |
| 16.1321 | 6.55 | 16.0450 | 0.00107 |
| 16.7585 | 6.58 | 16.8500 | 0.00101 |
| 18.7094 | 6.95 | 18.0500 | 0.00092 |
| 20.7676 | 7.50 | 20.5000 | 0.00082 |
