Polypropylene Insulated Winding Wire Exporter
Categories：
Keywords：
Product introduction

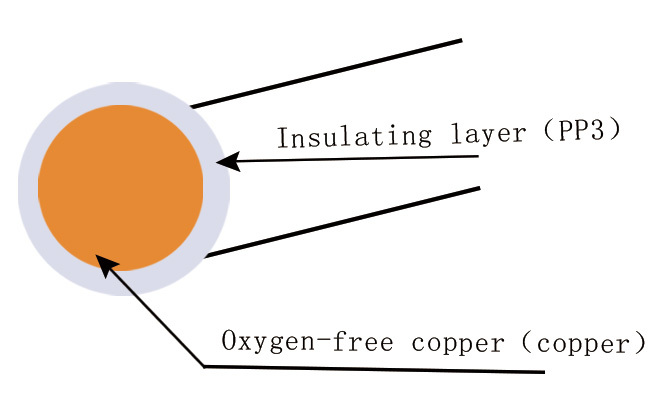

This product is made of new white high temperature resistant insulating material, excellent high and low temperature resistance, high surface strength, not easy to secondary damage, anti-aging is specially designed for high temperature media and water-resistant winding products, mainly used for hot spring pump, hot water pump can be used in the hot water environment for a long time, regardless of seasonal changes and not subject to regional restrictions。
Reference table for water-resistant line assembly specifications
| Nominal cross section(mm2) | Outer diameter (mm) | 100m/kg | D.C. resistance(Ω) |
| 0.1734 | 0.95 | 0.2550 | 0.09990 |
| 0.2042 | 0.95 | 0.2550 | 0.08540 |
| 0.2375 | 1.02 | 0.2800 | 0.07356 |
| 0.2550 | 1.10 | 0.3100 | 0.06870 |
| 0.2733 | 1.11 | 0.3133 | 0.06310 |
| 0.2826 | 1.11 | 0.3250 | 0.06222 |
| 0.3018 | 1.15 | 0.3515 | 0.05536 |
| 0.3215 | 1.15 | 0.3410 | 0.04300 |
| 0.3524 | 1.19 | 0.4120 | 0.04979 |
| 0.3737 | 1.19 | 0.4260 | 0.04700 |
| 0.3957 | 1.25 | 0.4460 | 0.04442 |
| 0.4299 | 1.25 | 0.4850 | 0.03987 |
| 0.4654 | 1.25 | 0.5100 | 0.03750 |
| 0.5024 | 1.30 | 0.5610 | 0.03500 |
| 0.5672 | 1.37 | 0.6200 | 0.03104 |
| 0.6359 | 1.67 | 0.7200 | 0.02765 |
| 0.6789 | 1.67 | 0.7520 | 0.02602 |
| 0.7235 | 1.72 | 0.7750 | 0.02484 |
| 0.7850 | 1.80 | 0.8700 | 0.02240 |
| 0.8491 | 1.84 | 0.9800 | 0.02071 |
| 0.8820 | 1.85 | 0.9900 | 0.01995 |
| 0.9156 | 1.85 | 1.0031 | 0.01896 |
| 0.9847 | 1.92 | 1.0700 | 0.01785 |
| 1.0563 | 1.95 | 1.1320 | 0.01678 |
| 1.0930 | 2.00 | 1.2930 | 0.01609 |
| 1.1304 | 2.00 | 1.2170 | 0.01520 |
| 1.2266 | 2.05 | 1.3160 | 0.01435 |
| 1.3267 | 2.10 | 1.3900 | 0.01325 |
| 1.4307 | 2.15 | 1.5200 | 0.01235 |
| 1.5386 | 2.20 | 1.6030 | 0.01143 |
| 1.6505 | 2.25 | 1.7170 | 0.01078 |
| 1.7663 | 2.30 | 1.8300 | 0.00996 |
| 1.9104 | 2.35 | 1.9310 | 0.00926 |
| 2.0096 | 2.40 | 2.0670 | 0.00875 |
| 2.1372 | 2.45 | 2.1536 | 0.00825 |
| 2.2687 | 2.55 | 2.2630 | 0.00775 |
| 2.5434 | 2.65 | 2.6620 | 0.00691 |
| 2.6867 | 2.70 | 2.7000 | 0.00674 |
| 2.8339 | 2.86 | 2.9412 | 0.00620 |
| 3.1400 | 3.00 | 3.1912 | 0.00560 |
| 3.5281 | 3.20 | 3.5293 | 0.00498 |
| 3.7994 | 3.40 | 3.6012 | 0.00462 |
| 3.9388 | 3.42 | 3.9000 | 0.00446 |
| 4.3721 | 3.55 | 4.2920 | 0.00402 |
| 4.5216 | 3.60 | 4.4700 | 0.00381 |
| 4.9063 | 3.70 | 4.8910 | 0.00358 |
| 5.3066 | 3.80 | 5.2490 | 0.00330 |
| 5.5127 | 3.85 | 5.4200 | 0.00319 |
| 5.7227 | 3.90 | 5.6380 | 0.00302 |
| 6.1544 | 4.00 | 6.0780 | 0.00286 |
| 6.3762 | 4.05 | 6.2460 | 0.00270 |
| 6.6019 | 4.10 | 6.4000 | 0.00267 |
| 7.0650 | 4.20 | 6.8390 | 0.00249 |
| 7.7892 | 4.45 | 7.5700 | 0.00226 |
| 8.0384 | 4.50 | 7.8200 | 0.00226 |
| 8.5487 | 4.60 | 8.4150 | 0.00186 |
| 8.8097 | 4.65 | 8.7000 | 0.00178 |
| 9.0746 | 4.70 | 9.6810 | 0.00167 |
| 9.6163 | 4.90 | 9.6700 | 0.00148 |
| 9.8930 | 4.95 | 9.6810 | 0.00139 |
| 10.1736 | 5.00 | 9.7200 | 0.00131 |
| 3.5168 | 3.62 | 3.8300 | 0.00510 |
| 3.9701 | 3.77 | 4.3000 | 0.00443 |
| 4.4510 | 3.93 | 4.8700 | 0.00403 |
| 5.0642 | 4.07 | 5.5500 | 0.00345 |
| 4.4950 | 4.22 | 5.5600 | 0.00326 |
| 5.9434 | 4.35 | 6.2083 | 0.00296 |
| 6.1742 | 4.40 | 6.8500 | 0.00279 |
| 6.8929 | 4.58 | 7.2400 | 0.00260 |
| 7.1010 | 4.73 | 7.4117 | 0.00247 |
| 7.7319 | 4.88 | 8.1900 | 0.00238 |
| 8.3897 | 5.05 | 8.5000 | 0.00214 |
| 9.5456 | 5.27 | 9.8300 | 0.00188 |
| 10.7761 | 5.52 | 11.2200 | 0.00166 |
| 12.0811 | 5.78 | 12.3800 | 0.00148 |
| 13.7457 | 6.08 | 14.1300 | 0.00133 |
| 14.9150 | 6.40 | 15.4100 | 0.00120 |
| 16.1321 | 6.55 | 16.0450 | 0.00107 |
| 16.7585 | 6.58 | 16.8500 | 0.00101 |
| 18.7094 | 6.95 | 18.0500 | 0.00092 |
| 20.7676 | 7.50 | 20.5000 | 0.00082 |
