Multi-Layer Insulated Winding Wire
Categories：
Keywords：
Product introduction

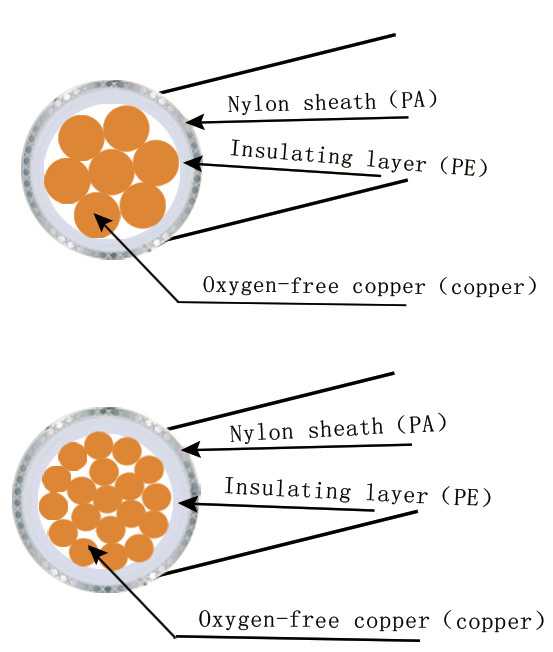

The product is made of double insulated outer skin, the wire core is made of 7 or 19 strands of oxygen-free bare copper wire twisted together, characterized by linear softness and thin insulation; ldpe waterproof insulation layer is the inner layer, pp2 is the outer layer as the jacket, high mechanical strength and abrasion resistance, corrosion resistance and waterproof performance is good, suitable for various types of high-power water-filled and oil-filled submersible electric pump motor.
Reference table for water-resistant line assembly specifications
|
Wire Size(mm) |
Nominal cross section(mm2) |
Outer diameter (mm) |
100m/kg |
D.C. resistance(Ω) |
|
7/0.80 |
3.5168 |
3.62 |
3.8300 |
0.00510 |
|
7/0.85 |
3.9704 |
3.77 |
4.3000 |
0.00443 |
|
7/0.90 |
4.4510 |
3.93 |
4.8700 |
0.00403 |
|
7/0.96 |
5.0642 |
4.07 |
5.5500 |
0.00345 |
|
7/1.00 |
4.4950 |
4.22 |
5.5600 |
0.00326 |
|
7/1.04 |
5.9434 |
4.35 |
6.2083 |
0.00296 |
|
7/1.06 |
6.1742 |
4.40 |
6.8500 |
0.00279 |
|
7/1.12 |
6.8929 |
4.58 |
7.2400 |
0.00260 |
|
19/0.69 |
7.1010 |
4.73 |
7.4117 |
0.00247 |
|
19/0.72 |
7.7319 |
4.88 |
8.1900 |
0.00238 |
|
19/0.75 |
8.3897 |
5 05 |
8.5000 |
0.00214 |
|
19/0.80 |
9.5456 |
5.27 |
9.8300 |
0.00188 |
|
19/0.85 |
10.7761 |
5.52 |
11.2200 |
0.00166 |
|
19/0.9 |
12.0811 |
5.78 |
12.3800 |
0.00148 |
|
19/0.96 |
13.7457 |
6.08 |
14.1300 |
0.00133 |
|
19/1.00 |
14.9150 |
6.40 |
15.4100 |
0.00120 |
|
19/1.04 |
16.1321 |
6.55 |
16.0450 |
0.00107 |
|
19/1.06 |
16.7585 |
6.58 |
16.8500 |
0.00101 |
|
19/1.12 |
18.7094 |
6.95 |
18.0500 |
0.00092 |
|
19/1.18 |
20.7676 |
7.50 |
20.5000 |
0.00082 |
